Suessen’s New EliTe
Lattice Apron or Mesh Aprons - 副本
- Machine Type：Suseen
- Type：Mesh aprons
- Mesh aprons of textile part
- Lattice Apron for Compact Spinning Systems of different makes
- Product description: The Lattice Apron provides adequate compacting of fibers and delivers yarn with low hairiness value. Suseen Mesh apron for compact machines parts 114*25 Suseen Lattice Apron for Compact Spinning Sys

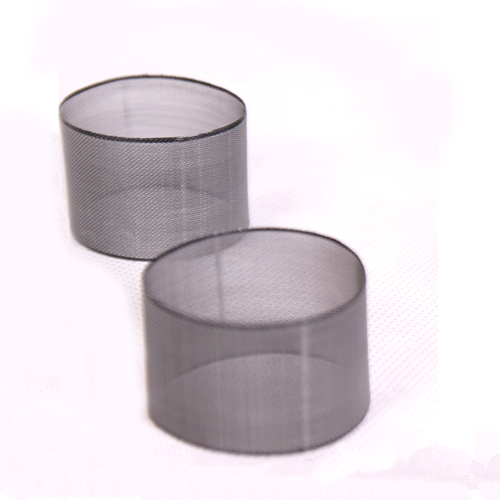

Lattice Apron or Mesh Aprons for Compact Spinning
Description by Manufacturer
Lattice Apron of best quality and price
Compact Spinning machines parts
It’s manufactured using superior quality anti-static
material to ensure trouble free performance
Product description:
√ Stability of the size
It is treated by special heat setting technology. We can get the good stability for its size although it is running in bad moisture condition.
√ Ventilate performance
Its mesh is well-proportioned in the basic fabric. The proper density of weaving and diameter of yarn can be suitable forall kinds of yarn for compact spinning.
√ Stronger Edge
Lattice Apron life is mostly depended on its edge..ur Lattice Apron edge cutted by
special technology, smooth and strong, life getting longer.
√ Better protection
Special weaving to protect the Elite Tube.
Specification and Size：
| 36.5*25 mm (114*25mm) | Suessen |
| 39.4*17 mm (124*17mm) | Toyota(new) |
| 34.9*25 mm (110*25mm) | Toyota(old) |
| 38.9*25 mm (122*25mm) | Huafang |
| 41.1*25 mm (129*25mm) | Tonghe |
| 37.5*22 mm (118*22mm) | Rifa |
| 43.3*18 mm (136*18mm) | Pinter |
| 36.3*15 mm (114*15mm) | Marzoli |
Comparison Table of Lattice Apron Density and Yarn Count：
| Apron Density |
Mesh Number(Weft Density/Inch) |
Mesh Numbers (Mesh/cm2) |
Range of Spinnable Yarn Count |
Best suitable Spinning Yarn (Count) |
| A | 160 | 3900 | > 60 | 80 - 120 |
| BA | 145 | 3200 | 40 - 120 | 50 - 80 |
| CA/B | 140 | 3000 | 32 - 100 | 40 - 80 |
| BC | 140 | 3000 | 32 - 100 | 40 - 80 |
| C | 130 | 2500 | 10 - 80 | 30 - 60 |
| CN | 100/118 | 1500/2100 | 20 - 100 | 20 - 60 |
| CD | 100/118 | 1500/2100 | 20 - 100 | 20 - 60 |
| D | 60/70/80/90 | 500-1200 | Wool | Wool |
Remarks:
1. Unless otherwise specified, the yarn count range refers to cotton, synthetic fiber and blended spinning.
2. When the density of lattice apron is in the range of the best suitable spinning yarn count, various indicators such as evenness, strength, hairiness, coarse details, etc. can achieve the best results.
3. CD-type density lattice apron has a life of at least one year, and D-type density lattice apron has a life of at least one and a half years.
The characteristics of the Lattice Apron:
1. There are complete products in different specifications, the other specific products can be customized according to customers' requirements.2. With flexible production equipment and excellent supply chain management, we promise quality, quantity and on-time delivery.
3. High breaking strength and long life.
4. Easy to clean and maintain, excellent electrical conductivity, effectively eliminate static electricity, reduce the formation of accumulated flowers, and greatly extend the cleaning cycle.
5. The friction coefficient of the lattice apron is small inside and large outside, which can control the fiber bundle well and have little friction on the shaped pipe.
6. The lattice apron is uniform, the shape is reasonable, the air permeability is large, and there are few flying waste in the workshop.
7.The finished yarn of the lattice aprons has good dryness, high strength, less hairiness, and low cost per ton of yarn.
